ECHOSON Biometry B-Scan
Brand: Echoson
ECHOSON Biometry B-Scan
ECHOSON Biometry B-Scan
BIOMETRIC SCANNERS PIROP
B-SCAN INTERIOR VISUALISATION (RETINA, NERVE, EYEBALL)
Description:
- Pirop: state of the art ophthalmic ultrasonic device for Biometry.
- Visualization and Pachymetry of eyeballs (A-Scan + B-Scan + CCT- Pachymeter) – modified version.
- B-SCAN – Eye examination
Modern ‘B-scan’ tool for ophthalmology, interior eyeball imaging, retina,
PIROP user’s interface based on touch screen technology makes operation easy and user-friendly. The touch screen can be also operated not only with fingers, but also using the enclosed stylus to keep it clean.
Features:

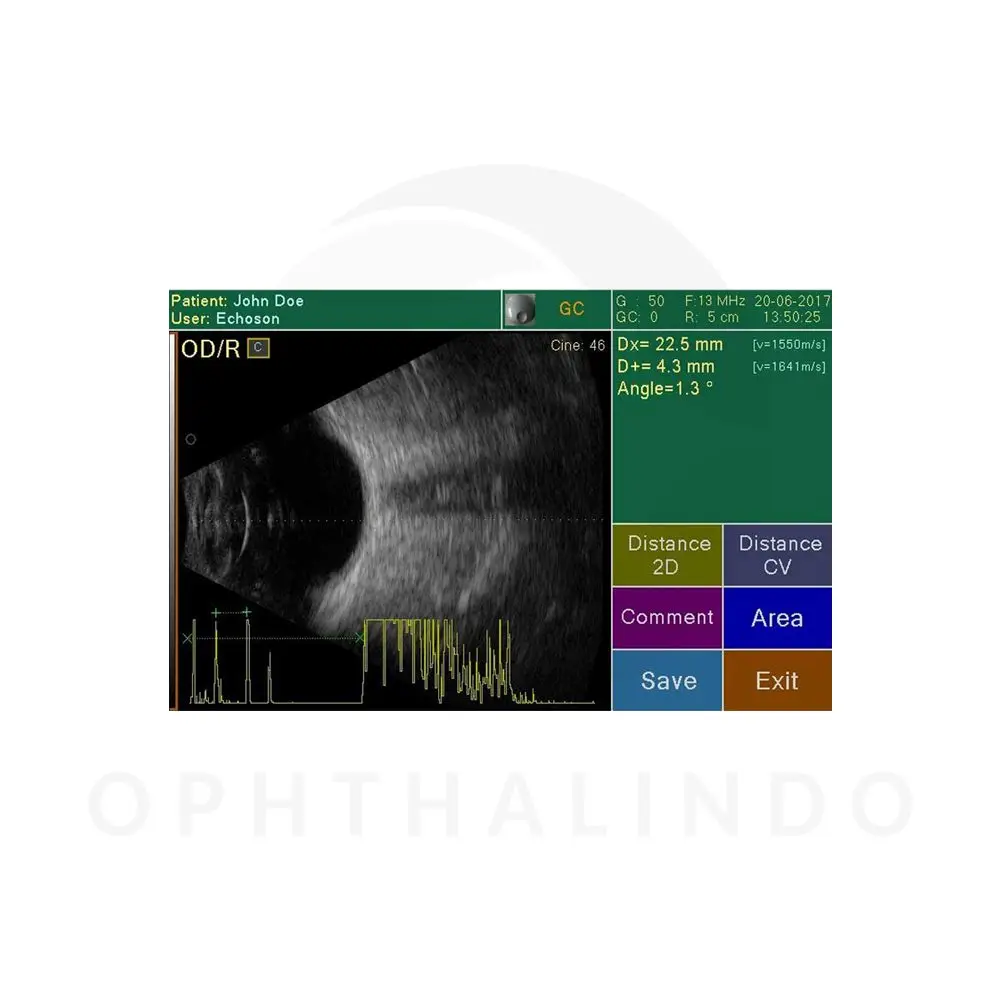

- Display modes : B, B+A, B+BA-mode for selected line CV (in Run and Freeze modes)
- Dynamic Range Correction
- Image cache memory M1..M4 independent for right and left eyes
- Zoom function (x2) in Run and Freeze modes
- Digital Gain Correction in Freeze mode
- Cineloop function (about 6 second) independent for left/right eyes
- Distances measurements with ultrasound velocity correction
- Area and angle measurements
- Pointers, comments entered by the user
- Composite video output for videoprinter
PIROP-PC Software (Optional)
- A special software that enables management of the patient database and measurements (images) obtained from PIROP scanner.
- It can be installed in any external PC computer, tablet etc. operated by Windows.
- Exchange of images and patient data between a scanner and the PIROP-PC application is done using an USB memory or via a direct USB connection.
- Possibility to print on any printer the special report of exams.
- Additional option – possibility to use the standard DICOM 3.0 to communicate with PACS/RIS systems (Store, Print, Worklist).
WEIGHT AND DIMENSIONS
- Dimensions (with built-in printer): 290 x 205 x 85 mm
- Weight (with built-in printer): 1.5 kg
ECHOSON Biometry B-Scan
BIOMETRIC SCANNERS PIROP
Specification:
- Probe frequency: 12 .. 15 MHz
- Scanning angle : 55ᵒͦ
- Range of scan: 20 .. 60 mm
- Gain/dymamics up to 110dB / 90dB
- TGC – zone gain adjustment in selected eye
- 256 Levels Gray Scale
- Axial clinical resolution: 0.12 mm
- Lateral clinical resolution : 0.3 mm
POWER SUPPLY
- Power supply from external AC/DC power adapter:
– input: 100-230V AC 50/60Hz / max 0.7A
– output: +12V DC / 2 A - Power consumption (12 DC supply) – ca 12 W
- Electrical safety standards
– Medical device Class IIa complies with MDD 93/42 EEC
– Scanner complies with requirements for Class II devices of EN/IEC 60601-1
GENERAL PROPERTIES
- Touch Screen
– easy, ergonomic and user-friendly operation via displayed menu
– virtual keyboard for entering patient data, etc. - Functional knob (gain control, review results, cine etc.)
- Color LCD 7” display
- Internal patient’s databas
- Ten (10) user profiles
- Support for barcode reader
- Possibility of connecting an external alphanumeric keyboard
- Recording of images in internal and USB-Pendrive memory.
- Internal thermal small printer (for A-scan and P-scan reports)
- Composite-video output PAL (for videoprinter or video monitor)
- Support of multiple languages
- Easy firmware upgrade via USB port
